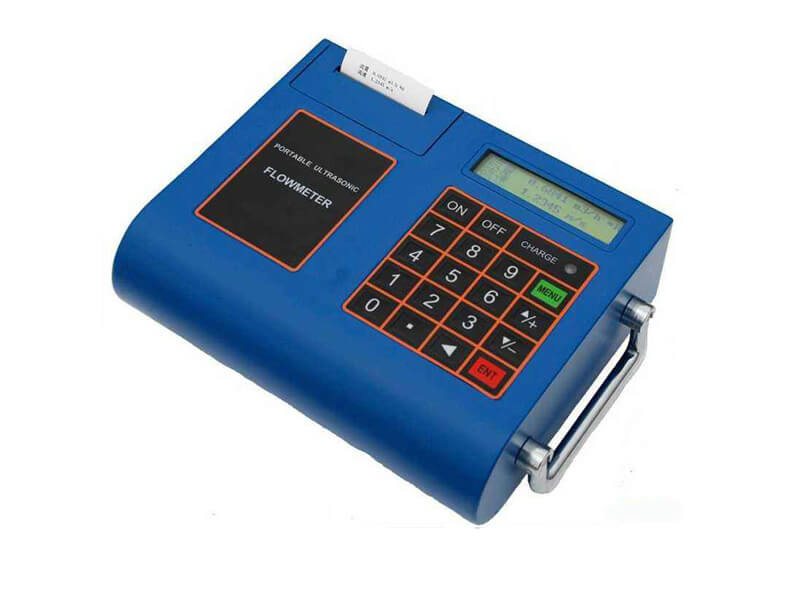

Portable Ultrasonic Flow Meter

  • Flow velocity range:0- ±30m/s
  • Accuracy:Better than ±1%
  • Power Consumption:1.5W
  • Medium Temperature:-30℃~160℃
  • Size:DN15-DN6000
Share With:
  • Overview
  • Technical Data
  • Inquiry
Principle

The ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non- fouling operation and easy installation.

Transit time ultrasonic flow meter send and receive ultrasonic waves between transducers in both the upstream and downstream directions in the pipe. At no flow conditions, it takes the same time to travel upstream and downstream between the transducers. Under flowing conditions, the upstream wave will travel slower and take more time than the (faster) downstream wave. When the fluid moves faster, the difference between the upstream and downstream times increases. The transmitter processes upstream and downstream times to determine the flow rate.

Features
• High Accuracy measuring
• Non-intrusive measuring
• Wide measuring range
• Large capacity battery
• Built-in printer
• Built-in data logger




certificate






Items

Specifications

Main unit

2 line x 20 character LCD with backlight

Working temperature: -25--60°C

Mini thermal printer with 24 line character output

4x4+2 pushbutton keypad

RS-485 interface for networking

Transducer options

TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110°C

TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110°C

TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110°C

Liquid types

Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave.

Flow velocity range

0- ±30m/s

Accuracy

Better than ±1%

Power Supply

Built-in rechargeable Ni-MH battery (for 20 hours operation) or

AC 220V

Power Consumption

1.5W

Charging

Intelligent charging with AC 220V; After charging sufficiently, it automatically stop and display green light

Weight

Net weight: 2.5kg (main unit)

Remarks

With a high strength carrying case suitable for normal and harsh environment

Inquiry >>
