Coriolis Mass Flow Meter

Share With:
  • Overview
  • Technical Data
  • Inquiry

Coriolis Mass (1)

Coriolis Mass (2)
  • Petroleum, such as crude oil, coal slurry, lubricant and other fuels
  • High viscosity materials, such as asphalt, heavy oil and grease
  • Suspended and solid particulate matter materials, such as cement slurry and lime slurry;
  • Easy-to-solidified materials, such as asphalt
  • Micro-flow measurements, such as fine chemical and pharmaceutical industries;

Coriolis Mass (3)
Coriolis Mass (4)
Coriolis Mass (5)
Coriolis Mass (6)
Independent of density changes, ability to measure undefined or
variable mixtures

Coriolis Mass (7)

Coriolis Mass (8)
Coriolis Mass (9)

     SPECIFICATION



Flow accuracy ±0.2% Optional ±0.1%
Diameter DN3~DN200mm
Flow repeatability ±0.1~0.2%
Density measuring 0.3~3.000g/cm3
Density accuracy ±0.002g/cm3
Temperature measuring range -200~300℃ (Standard Model -50~200℃)
Temperature accuracy +/-1℃
Output of current loop 4~20mA; Optional signal of flow rate/Density/Temperature
Output of frequency/pulse 0~10000HZ; Flow signal (Open collector)
Communication RS485, MODBUS protocol
Power supply of transmitter 18~36VDC power≤7W or 85~265VDC power 10W
Protection class IP67
Material Measuring tube SS316L housing:SS304
Pressure rating 4.0Mpa (Standard pressure)
Explosion-proof Exd(ia) IIC T6Gb
Enviroment Specifications
Ambient temperature -20~-60℃
Enviroment humidity ≤90%RH





      FLOW RANGE



Specification

DN

(mm)

Flow range

(kg/h)

Zero stability, kg/h

NW

(kg)

GW

(kg)

0.2% 0.15% 0.1%
QTCMF-003 3 0~96~120 0.018 0.012 0.012 8 19
QTCMF-006 6 0~540~660 0.099 0.066 0.066 12 22
QTCMF-008 8 0~960~1200 0.18 0.12 0.12 12 23
QTCMF-010 10 0~1500~1800 0.27 0.18 0.18 11 24
QTCMF-015 15 0~3000~4200 0.63 0.42 0.42 12 25
QTCMF-020 20 0~6000~7800 1.17 0.78 0.78 20 34
QTCMF-025 25 0~10200~13500 2.025 1.35 1.35 21 35
QTCMF-032 32 0~18000~24000 3.6 2.4 2.4 27 45
QTCMF-040 40 0~30000~36000 5.4 3.6 3.6 35 55
QTCMF-050 50 0~48000~60000 9 6 6 40 60
QTCMF-080 80 0~120000~160000 24 16 16 90 150
QTCMF-100 100 0~222000~270000 40.5 27 27 170 245
QTCMF-150 150 0~480000~600000 90 60 60 255 350

Coriolis Mass (10)
Coriolis Mass (11)
Coriolis Mass (12)
Coriolis Mass (13)
Coriolis Mass (14)
Coriolis Mass (15)


     SPECIFICATION

Flow accuracy ±0.2% Optional ±0.1%
Diameter DN3~DN200mm
Flow repeatability ±0.1~0.2%
Density measuring 0.3~3.000g/cm3
Density accuracy ±0.002g/cm3
Temperature measuring range -200~300℃ (Standard Model -50~200℃)
Temperature accuracy +/-1℃
Output of current loop 4~20mA; Optional signal of flow rate/Density/Temperature
Output of frequency/pulse 0~10000HZ; Flow signal (Open collector)
Communication RS485, MODBUS protocol
Power supply of transmitter 18~36VDC power≤7W or 85~265VDC power 10W
Protection class IP67
Material Measuring tube SS316L housing:SS304
Pressure rating 4.0Mpa (Standard pressure)
Explosion-proof Exd(ia) IIC T6Gb
Enviroment Specifications
Ambient temperature -20~-60℃
Enviroment humidity ≤90%RH



      FLOW RANGE

Specification

DN

(mm)

Flow range

(kg/h)

Zero stability, kg/h

NW

(kg)

GW

(kg)

0.2% 0.15% 0.1%
QTCMF-003 3 0~96~120 0.018 0.012 0.012 8 19
QTCMF-006 6 0~540~660 0.099 0.066 0.066 12 22
QTCMF-008 8 0~960~1200 0.18 0.12 0.12 12 23
QTCMF-010 10 0~1500~1800 0.27 0.18 0.18 11 24
QTCMF-015 15 0~3000~4200 0.63 0.42 0.42 12 25
QTCMF-020 20 0~6000~7800 1.17 0.78 0.78 20 34
QTCMF-025 25 0~10200~13500 2.025 1.35 1.35 21 35
QTCMF-032 32 0~18000~24000 3.6 2.4 2.4 27 45
QTCMF-040 40 0~30000~36000 5.4 3.6 3.6 35 55
QTCMF-050 50 0~48000~60000 9 6 6 40 60
QTCMF-080 80 0~120000~160000 24 16 16 90 150
QTCMF-100 100 0~222000~270000 40.5 27 27 170 245
QTCMF-150 150 0~480000~600000 90 60 60 255 350

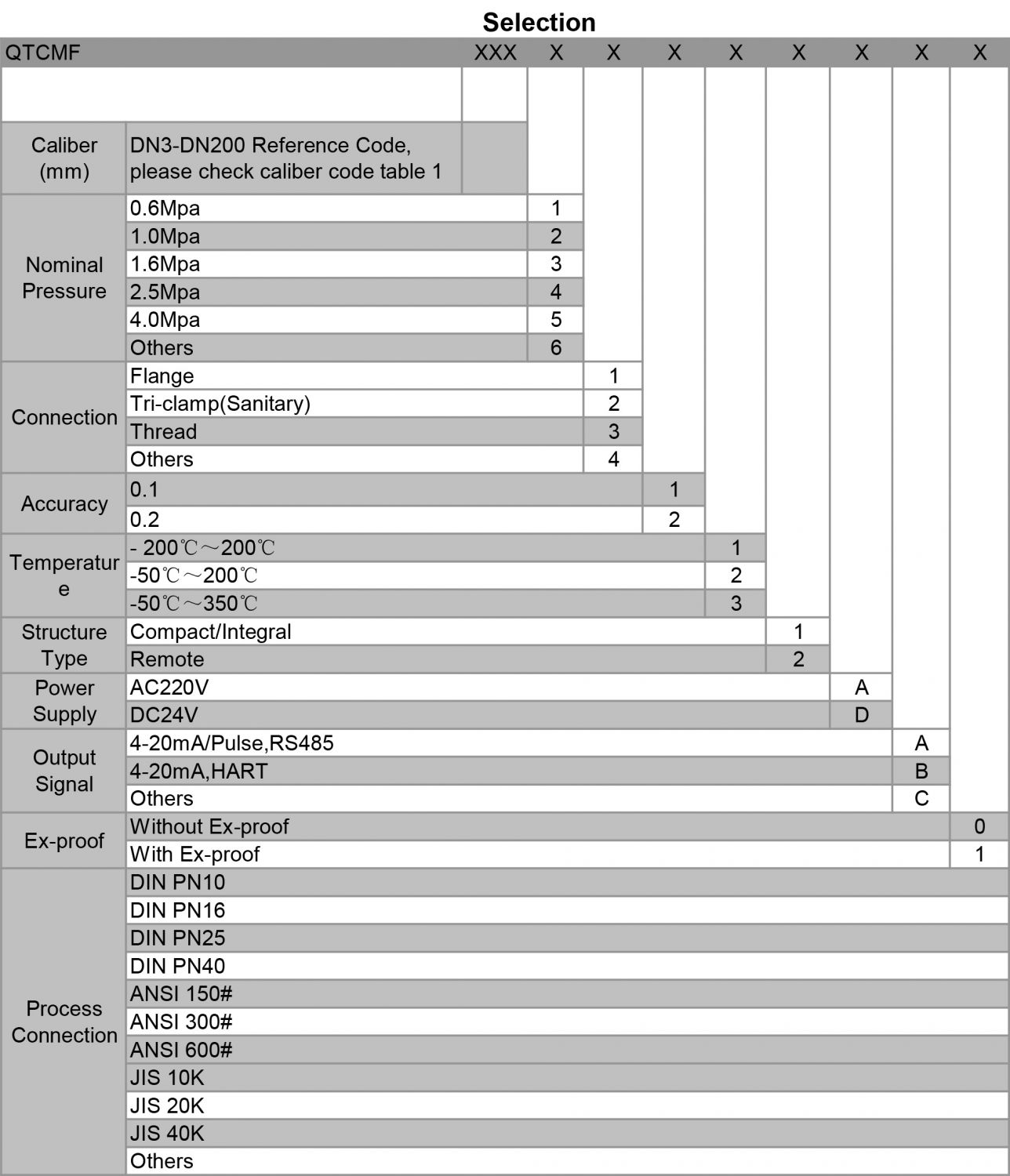

      MODEL SELECTION
coriolis mass flow meter model selection
Inquiry >>
